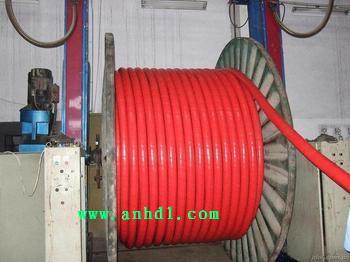

产品名称： JGGFR硅橡胶电缆 | |
| 产品型号： JGGFR | ||
| 产品价格： |
||
| 发布时间：2013-7-28 10:21:59 | ||
| 关 注 度：11714 | ||
产品适用于交流额定电压0.6/1KV及以下固定敷设用动力传输线或移动电器用连接电缆，产品具有耐热辐射、耐寒、耐酸碱及腐蚀性气体、防水等特性，电缆结构柔软，辐射方便，高温（高寒）环境下电气性能稳定，抗老化性能突出，使用寿命长，广泛用于冶金、电力、石化、电子、汽车制造等行业。
基本电缆规格及结构参数
|
线芯*标称截面（mm2） |
导体结构
（根数*直径）
（B/R）
mm |
电缆最大外径（mm） |
参考重量（kg/km） |
||
|
JGGF |
YGCR
JGGFR |
YGCR
JGGFR |
YGC22
JGG22 |
||
|
1*1.5 |
19*0.32/48*0.20 |
3.2 |
3.5 |
27.5 |
|
|
1*2.5 |
19*0.41/51*0.25 |
3.7 |
3.9 |
38.6 |
|
|
1*4 |
19*0.52/82*0.25 |
4.6 |
5.2 |
55.5 |
|
|
1*6 |
19*0.65/123*0.25 |
5.6 |
6.5 |
77.7 |
|
|
1*10 |
48*0.52/204*0.25 |
7.2 |
7.8 |
132 |
|
|
1*16 |
75*0.52/323*0.25 |
8.2 |
9.0 |
188 |
|
|
1*25 |
108*0.52/513*0.25 |
10.2 |
11.0 |
312 |
|
|
1*35 |
108*0.65/722*0.25 |
112 |
12.0 |
408 |
|
|
1*50 |
10*2.52/1026*0.25 |
13.5 |
14.5 |
554 |
|
|
1*70 |
19*2.16/1406*0.25 |
16.5 |
17.5 |
762 |
|
|
1*95 |
19*2.52/486*0.50 |
19.0 |
20.5 |
1045 |
|
|
1*120 |
24*2.52/608*0.50 |
20.0 |
22.0 |
1281 |
|
|
1*150 |
30*2.52/760*0.50 |
21.0 |
24.2 |
1612 |
|
|
1*185 |
37*2.52/945*0.50 |
25.0 |
28.0 |
1981 |
|
|
2*2.5 |
7*0.68/51*0.25 |
10.5 |
11.2 |
158 |
272 |
|
2*4 |
19*0.52/82*0.25 |
12 |
13.2 |
210 |
347 |
|
2*6 |
19*0.65/123*0.25 |
14.0 |
15.3 |
263 |
407 |
|
2*10 |
7*1.37/204*0.25 |
17.8 |
18.9 |
394 |
562 |
|
2*16 |
7*1.70/323*0.25 |
20.0 |
21.2 |
540 |
724 |
|
2*25 |
7*2.15/513*0.25 |
23.0 |
24.5 |
794 |
828 |
|
2*35 |
7*2.52/722*0.25 |
25.7 |
26.3 |
1037 |
1037 |
|
2*50 |
10*2.52/1026*0.25 |
26.0 |
27.5 |
1236 |
1385 |
|
2*70 |
19*2.16/1406*0.25 |
27.0 |
28.9 |
1647 |
1792 |
|
2*95 |
19*2.52/486*0.50 |
32.0 |
33.9 |
2189 |
2654 |
|
2*120 |
24*2.52/608*0.50 |
45.0 |
48.0 |
2640 |
3180 |
|
2*150 |
30*2.52/760*0.50 |
52.0 |
57.0 |
3280 |
3920 |
|
2*185 |
37*2.52/945*0.50 |
60.0 |
65.0 |
4006 |
4768 |
|
3*1.5 |
7*0.52/48*0.20 |
9.7 |
10.7 |
150 |
291 |
|
3*2.5 |
7*0.68/51*0.25 |
11.7 |
12.2 |
196 |
342 |
|
3*4 |
19*0.52/82*0.25 |
12.6 |
13.5 |
274 |
444 |
|
3*6 |
19*0.65/123*0.25 |
14.8 |
16.2 |
350 |
531 |
|
3*10 |
7*1.37/204*0.25 |
20.0 |
22.0 |
539 |
737 |
|
3*16 |
7*1.70/323*0.25 |
22.0 |
24.5 |
740 |
972 |
|
3*25 |
7*2.15/513*0.25 |
25.3 |
27.0 |
1139 |
1372 |
|
3*35 |
7*2.52/722*0.25 |
28.0 |
31.5 |
1480 |
1729 |
|
3*50 |
10*2.52/1026*0.25 |
32.0 |
37.5 |
1900 |
2405 |
|
3*70 |
19*2.16/1406*0.25 |
41.0 |
50.0 |
4061 |
3087 |
|
3*95 |
19*2.52/486*0.50 |
45.0 |
55.0 |
997 |
4003 |
|
3*120 |
24*2.52/608*0.50 |
50.0 |
60.0 |
4060 |
4887 |
|
3*150 |
30*2.52/760*0.50 |
60.0 |
65.0 |
5197 |
2995 |
|
3*185 |
37*2.52/945*0.50 |
65.0 |
70.0 |
6279 |
7262 |
|
3*4+1*2.5 |
19*0.52/82*0.25 |
14.5 |
15.5 |
320 |
481 |
|
3*6+1*4 |
19*0.65/123*0.25 |
16.2 |
17.8 |
423 |
597 |
|
3*10+1*6 |
7*1.37/204*0.25 |
21.0 |
23.0 |
630 |
827 |
|
3*16+1*10 |
7*1.70/323*0.25 |
23.0 |
25.0 |
888 |
1255 |
|
3*25+1*16 |
7*2.15/513*0.25 |
27.0 |
29.0 |
1375 |
1578 |
|
3*35+1*16 |
7*2.52/722*0.25 |
32.3 |
35.0 |
1690 |
1927 |
|
3*50+1*25 |
10*2.52/1026*0.25 |
36.0 |
40.0 |
2175 |
2760 |
|
3*70+1*35 |
19*2.16/1406*0.25 |
40.0 |
44.0 |
2950 |
3546 |
|
3*95+1*50 |
19*2.52/486*0.50 |
46.0 |
52.0 |
3950 |
4670 |
|
3*120+1*70 |
24*2.52/608*0.50 |
51.0 |
55.0 |
4800 |
5745 |
|
3*150+1*70 |
30*2.52/760*0.50 |
56.0 |
60.0 |
5810 |
6862 |
|
3*185+1*95 |
37*2.52/945*0.50 |
66.0 |
70.0 |
7200 |
8394 |
|
4*4 |
19*0.52/82*0.25 |
14.2 |
16.2 |
352 |
515 |
|
4*6 |
19*0.65/123*0.25 |
17.1 |
19.0 |
450 |
629 |
|
4*10 |
7*1.37/204*0.25 |
22.1 |
24.0 |
672 |
881 |
|
4*16 |
7*1.70/323*0.25 |
24.5 |
26.5 |
952 |
1176 |
|
4*25 |
7*2.15/513*0.25 |
27.0 |
31.5 |
1476 |
1673 |
|
4*35 |
7*2.52/722*0.25 |
33.0 |
35.5 |
1876 |
2142 |
|
4*50 |
10*2.52/1026*0.25 |
39.0 |
41.0 |
2392 |
2982 |
|
4*70 |
19*2.16/1406*0.25 |
41.0 |
44.0 |
3300 |
3871 |
|
4*95 |
19*2.52/486*0.50 |
47.0 |
50.0 |
4300 |
5094 |
|
4*120 |
24*2.52/608*0.50 |
49.0 |
54.0 |
5380 |
6187 |
|
4*150 |
30*2.52/760*0.50 |
56.0 |
60.0 |
6750 |
7596 |
|
4*185 |
37*2.52/945*0.50 |
68.0 |
72.0 |
8190 |
9194 |
|
我公司生产五芯等截面电缆和3+2结构电缆结构参数不在此表中。 |
|||||
