KFGR KFGRP KF46G KF46GP 硅橡胶电缆
产品型号：KFGR KFGRP KF46G KF46GP
执行标准：QB/TWB2008-06http://www.anhdl.com
1、额定电压：300/500V
2、工作温度：-60～+200℃

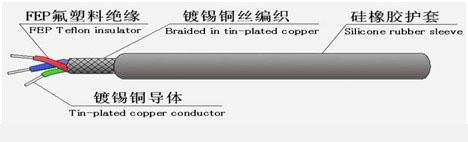

3、导 体：绞合镀锡铜线
4、绝 缘：FEP 铁氟龙
5、护 套：硅橡胶http://www.anhdl.com
6、颜 色：红/黄/兰/白/黑/黄绿/棕/绿等
特点/用途：
在长期潮湿环境中使用，电性能及防水、防霉性能优越。弯曲性能优良，最小弯曲半径为电缆外径16倍，可移动使用。
使用于交流额定电压450/750V及以下各种移动式电机、钢铁、航空、电厂、石化等高温环境中使用。
交货要求：
按双方合同协议商定，允许不小于10米的短段交货。其数量应不超过交货总长度的10%。
规格结构及技术参数：
|
芯数×截面 （mm2） |
导体结构 |
绝缘厚度 |
绝缘外径 |
护套厚度 |
平均外径 |
20 ℃时导体直流电阻 |
|
1×0.4 |
48/0.10 |
0.50 |
1.80 |
0.80 |
4.0 |
53.1 |
|
1×0.75 |
19/0.23 |
0.60 |
2.35 |
0.65 |
4.10 |
24.6 |
|
1×1.5 |
19/0.32 |
0.60 |
2.80 |
1.20 |
5.80 |
12.7 |
|
3×0.08 |
7/0.12 |
0.20 |
0.76 |
0.70 |
3.40 |
245 |
|
4×0.08 |
7/0.12 |
0.20 |
0.76 |
0.80 |
4.0 |
245 |
|
5×0.08 |
7/0.12 |
0.20 |
0.76 |
0.80 |
4.20 |
245 |
|
6×0.08 |
7/0.12 |
0.20 |
0.76 |
1.10 |
5.20 |
245 |
|
2×0.12 |
7/0.15 |
0.25 |
0.95 |
0.70 |
3.90 |
163 |
|
3×0.12 |
7/0.15 |
0.25 |
0.95 |
0.70 |
4.0 |
163 |
|
4×0.15 |
7/0.15 |
0.25 |
0.95 |
1.0 |
4.80 |
163 |
|
5×0.12 |
7/0.15 |
0.25 |
0.95 |
0.90 |
4.90 |
163 |
|
6×0.12 |
7/0.15 |
0.25 |
0.95 |
1.0 |
5.40 |
163 |
|
7×0.12 |
7/0.15 |
0.25 |
0.95 |
1.0 |
5.50 |
163 |
|
2×0.2 |
7/0.20 |
0.25 |
1.10 |
0.80 |
4.30 |
90.4 |
|
3×0.2 |
7/0.20 |
0.25 |
1.10 |
0.80 |
4.50 |
90.4 |
|
4×0.2 |
7/0.20 |
0.25 |
1.10 |
1.0 |
5.20 |
90.4 |
|
5×0.2 |
7/0.20 |
0.25 |
1.10 |
1.0 |
5.50 |
90.4 |
|
6×0.2 |
7/0.20 |
0.25 |
1.10 |
1.2 |
6.20 |
90.4 |
|
7×0.2 |
7/0.20 |
0.25 |
1.10 |
1.2 |
6.20 |
90.4 |
|
8×0.2 |
7/0.20 |
0.25 |
1.10 |
1.2 |
6.50 |
90.4 |
|
10×0.2 |
7/0.20 |
0.25 |
1.10 |
1.40 |
7.60 |
90.4 |
|
16×0.2 |
7/0.20 |
0.25 |
1.10 |
1.50 |
8.60 |
90.4 |
|
19×0.2 |
7/0.20 |
0.25 |
1.10 |
1.50 |
9.0 |
90.4 |
|
2×0.35 |
19/0.16 |
0.25 |
1.30 |
1.0 |
5.0 |
53.1 |
|
3*0.35 |
19/0.16 |
0.25 |
1.30 |
1.0 |
5.40 |
53.1 |
|
4×0.35 |
19/0.16 |
0.25 |
1.30 |
1.20 |
6.20 |
53.1 |
|
5×0.35 |
19/0.16 |
0.25 |
1.30 |
1.20 |
6.50 |
53.1 |
|
6×0.35 |
19/0.16 |
0.25 |
1.30 |
1.20 |
7.0 |
53.1 |
|
7×0.35 |
19/0.16 |
0.25 |
1.30 |
1.20 |
7.0 |
53.1 |
|
8×0.35 |
19/0.16 |
0.25 |
1.30 |
1.40 |
7.80 |
53.1 |
|
2×0.5 |
19/0.18 |
0.25 |
1.40 |
1.0 |
5.20 |
40.1 |
|
3×0.5 |
19/0.18 |
0.25 |
1.40 |
1.0 |
5.50 |
40.1 |
|
4×0.5 |
19/0.18 |
0.25 |
1.40 |
1.10 |
6.10 |
40.1 |
|
5×0.5 |
19/0.18 |
0.25 |
1.40 |
1.20 |
6.80 |
40.1 |
|
6×0.5 |
19/0.18 |
0.25 |
1.40 |
1.30 |
7.20 |
40.1 |
|
7×0.5 |
19/0.18 |
0.25 |
1.40 |
1.30 |
7.40 |
40.1 |
|
2×0.75 |
19/0.23 |
0.25 |
1.70 |
1.20 |
6.30 |
24.6 |
|
3×0.75 |
19/0.23 |
0.25 |
1.70 |
1.40 |
7.0 |
24.6 |
|
4×0.75 |
19/0.23 |
0.25 |
1.70 |
1.60 |
8.0 |
24.6 |
|
5×0.75 |
19/0.23 |
0.25 |
1.70 |
1.50 |
8.20 |
24.6 |
|
6×0.75 |
19/0.23 |
0.25 |
1.70 |
1.50 |
8.60 |
24.6 |
|
7×0.75 |
19/0.23 |
0.25 |
1.70 |
1.60 |
8.80 |
24.6 |
|
2×1 |
19/0.26 |
0.25 |
1.80 |
1.20 |
6.60 |
20.4 |
|
3×1 |
19/0.26 |
0.25 |
1.80 |
1.40 |
7.30 |
20.4 |
|
4×1 |
19/0.26 |
0.25 |
1.80 |
1.40 |
7.80 |
20.4 |
|
7×1 |
19/0.26 |
0.25 |
1.80 |
1.60 |
8.60 |
20.4 |
|
2×1.5 |
19/0.32 |
0.30 |
2.25 |
1.30 |
7.70 |
12.7 |
|
3×1.5 |
19/0.32 |
0.30 |
2.25 |
1.40 |
8.20 |
12.7 |
|
4×1.5 |
19/0.32 |
0.30 |
2.25 |
1.40 |
8.50 |
12.7 |
|
7×1.5 |
19/0.32 |
0.30 |
2.25 |
1.60 |
10.50 |
12.7 |
|
2×2.5 |
19/0.41 |
0.40 |
2.80 |
1.50 |
9.20 |
7.43 |
|
3×2.5 |
19/0.41 |
0.40 |
2.80 |
1.50 |
9.60 |
7.43 |
|
4×2.5 |
19/0.41 |
0.40 |
2.80 |
1.60 |
10.60 |
7.43 |
|
7×2.5 |
19/0.41 |
0.40 |
2.80 |
1.80 |
12.6 |
7.43 |
