铁路机车电缆WDZ-DCK-100, WDZ-DCK-125 250V, 750V

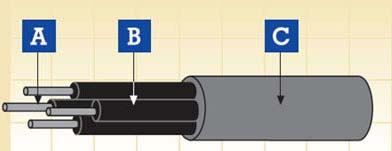

A. 导体 B. 绝缘 C. 屏蔽 D.护套
应用
在铁路运输机车的内部或外部安装时用作电力和控制电缆，在这种环境下搬运和安装成本是需要考虑的很重要因素。 用于控制，辅助和主电路接线如有线电视吊带，开关和控制面板，驾驶台等。
电缆结构
导体：镀锡铜丝
绝缘 ：低烟无卤阻燃复合物
分离层（如果需要）
填充物
护套：低烟无卤阻燃复合物
电气及机械性能
标称电压 250V, 750V
防火性能
阻燃 GB/T18380.1-2001; GB/T18380.3-2001 C
WDZ-DCK-100, WDZ-DCK-125 250V
|
芯数/导体截面积 |
导体结构 |
外径 |
重量 |
20°C导体最大电阻 |
|
mm² |
No/mm |
mm |
kg/km |
Ω/km |
|
2×0.5 |
16/0.20 |
6.6 |
62 |
40.1 |
|
3×0.5 |
16/0.20 |
7.3 |
70 |
40.1 |
|
5×0.5 |
16/0.20 |
8.4 |
96 |
40.1 |
|
7×0.5 |
16/0.20 |
9.0 |
116 |
40.1 |
|
11×0.5 |
16/0.20 |
11.2 |
167 |
40.1 |
|
16×0.5 |
16/0.20 |
12.2 |
215 |
40.1 |
|
19×0.5 |
16/0.20 |
13.2 |
256 |
40.1 |
|
20×0.5 |
16/0.20 |
13.8 |
272 |
40.1 |
|
24×0.5 |
16/0.20 |
15.1 |
313 |
40.1 |
|
33×0.5 |
16/0.20 |
16.5 |
398 |
40.1 |
|
37×0.5 |
16/0.20 |
17.0 |
436 |
40.1 |
|
43×0.5 |
16/0.20 |
19.4 |
487 |
40.1 |
|
48×0.5 |
16/0.20 |
19.7 |
564 |
40.1 |
|
2×0.75 |
24/0.20 |
7.1 |
71 |
26.7 |
|
3×0.75 |
24/0.20 |
7.9 |
83 |
26.7 |
|
5×0.75 |
24/0.20 |
9.0 |
113 |
26.7 |
|
7×0.75 |
24/0.20 |
9.7 |
141 |
26.7 |
|
11×0.75 |
24/0.20 |
12.2 |
206 |
26.7 |
|
16×0.75 |
24/0.20 |
13.8 |
282 |
26.7 |
|
19×0.75 |
24/0.20 |
14.4 |
320 |
26.7 |
|
20×0.75 |
24/0.20 |
15.0 |
342 |
26.7 |
|
24×0.75 |
24/0.20 |
16.6 |
394 |
26.7 |
|
33×0.75 |
24/0.20 |
18.1 |
507 |
26.7 |
|
37×0.75 |
24/0.20 |
19.1 |
574 |
26.7 |
|
43×0.75 |
24/0.20 |
21.3 |
661 |
26.7 |
|
48×0.75 |
24/0.20 |
21.6 |
720 |
26.7 |
|
2×1.0 |
32/0.20 |
7.5 |
80 |
20.0 |
|
3×1.0 |
32/0.20 |
8.2 |
94 |
20.0 |
|
5×1.0 |
32/0.20 |
9.5 |
133 |
20.0 |
|
7×1.0 |
32/0.20 |
10.2 |
164 |
20.0 |
|
11×1.0 |
32/0.20 |
13.3 |
256 |
20.0 |
|
16×1.0 |
32/0.20 |
14.6 |
333 |
20.0 |
|
19×1.0 |
32/0.20 |
15.3 |
381 |
20.0 |
|
20×1.0 |
32/0.20 |
16.0 |
405 |
20.0 |
|
24×1.0 |
32/0.20 |
17.6 |
470 |
20.0 |
|
33×1.0 |
32/0.20 |
19.7 |
629 |
20.0 |
|
37×1.0 |
32/0.20 |
20.4 |
690 |
20.0 |
|
43×1.0 |
32/0.20 |
22.7 |
795 |
20.0 |
|
48×1.0 |
32/0.20 |
23.1 |
868 |
20.0 |
|
2×1.5 |
48/0.20 |
8.1 |
97 |
13.7 |
|
3×1.5 |
48/0.20 |
8.9 |
115 |
13.7 |
|
5×1.5 |
48/0.20 |
10.3 |
167 |
13.7 |
|
7×1.5 |
48/0.20 |
11.1 |
210 |
13.7 |
|
11×1.5 |
48/0.20 |
14.5 |
328 |
13.7 |
|
16×1.5 |
48/0.20 |
16.0 |
436 |
13.7 |
|
19×1.5 |
48/0.20 |
16.8 |
499 |
13.7 |
|
20×1.5 |
48/0.20 |
17.5 |
531 |
13.7 |
|
24×1.5 |
48/0.20 |
19.8 |
638 |
13.7 |
|
33×1.5 |
48/0.20 |
21.6 |
831 |
13.7 |
|
37×1.5 |
48/0.20 |
22.4 |
913 |
13.7 |
|
43×1.5 |
48/0.20 |
25.4 |
1081 |
13.7 |
|
48×1.5 |
48/0.20 |
25.8 |
1182 |
13.7 |
|
2×2.5 |
77/0.20 |
9.0 |
126 |
8.21 |
|
3×2.5 |
77/0.20 |
9.9 |
159 |
8.21 |
|
5×2.5 |
77/0.20 |
11.6 |
228 |
8.21 |
|
7×2.5 |
77/0.20 |
12.5 |
291 |
8.21 |
|
11×2.5 |
77/0.20 |
16.5 |
457 |
8.21 |
|
16×2.5 |
77/0.20 |
18.2 |
616 |
8.21 |
|
19×2.5 |
77/0.20 |
19.5 |
709 |
8.21 |
|
20×2.5 |
77/0.20 |
20.4 |
775 |
8.21 |
|
24×2.5 |
77/0.20 |
22.6 |
905 |
8.21 |
|
33×2.5 |
77/0.20 |
25.2 |
1217 |
8.21 |
|
37×2.5 |
77/0.20 |
26.1 |
1342 |
8.21 |
|
43×2.5 |
77/0.20 |
29.2 |
1551 |
8.21 |
|
48×2.5 |
77/0.20 |
29.7 |
1702 |
8.21 |
|
2×4.0 |
77/0.26 |
10.6 |
179 |
5.09 |
|
3×4.0 |
77/0.26 |
11.6 |
233 |
5.09 |
|
5×4.0 |
77/0.26 |
14.1 |
356 |
5.09 |
|
7×4.0 |
77/0.26 |
15.3 |
459 |
5.09 |
|
11×4.0 |
77/0.26 |
20.2 |
721 |
5.09 |
|
16×4.0 |
77/0.26 |
22.3 |
979 |
5.09 |
|
19×4.0 |
77/0.26 |
23.5 |
1132 |
5.09 |
|
20×4.0 |
77/0.26 |
25.1 |
1231 |
5.09 |
|
24×4.0 |
77/0.26 |
27.8 |
1441 |
5.09 |
|
33×4.0 |
77/0.26 |
30.5 |
1910 |
5.09 |
|
37×4.0 |
77/0.26 |
31.7 |
2111 |
5.09 |
|
43×4.0 |
77/0.26 |
36.6 |
2536 |
5.09 |
|
48×4.0 |
77/0.26 |
37.2 |
2786 |
5.09 |
WDZ-DCK-100, WDZ-DCK-125 750V
|
芯数/导体截面积 |
导体结构 |
外径 |
重量 |
20°C导体最大电阻 |
|
mm² |
No/mm |
mm |
kg/km |
Ω/km |
|
2×0.5 |
16/0.20 |
7.8 |
78 |
40.1 |
|
3×0.5 |
16/0.20 |
8.6 |
89 |
40.1 |
|
5×0.5 |
16/0.20 |
10.0 |
124 |
40.1 |
|
7×0.5 |
16/0.20 |
10.8 |
151 |
40.1 |
|
11×0.5 |
16/0.20 |
14.1 |
239 |
40.1 |
|
16×0.5 |
16/0.20 |
15.4 |
302 |
40.1 |
|
19×0.5 |
16/0.20 |
16.2 |
340 |
40.1 |
|
20×0.5 |
16/0.20 |
17.0 |
364 |
40.1 |
|
24×0.5 |
16/0.20 |
19.1 |
437 |
40.1 |
|
33×0.5 |
16/0.20 |
20.9 |
557 |
40.1 |
|
37×0.5 |
16/0.20 |
21.6 |
607 |
40.1 |
|
43×0.5 |
16/0.20 |
24.6 |
723 |
40.1 |
|
48×0.5 |
16/0.20 |
24.9 |
783 |
40.1 |
|
2×0.75 |
24/0.20 |
8.3 |
89 |
26.7 |
|
3×0.75 |
24/0.20 |
9.1 |
103 |
26.7 |
|
5×0.75 |
24/0.20 |
10.7 |
145 |
26.7 |
|
7×0.75 |
24/0.20 |
11.5 |
178 |
26.7 |
|
11×0.75 |
24/0.20 |
15.1 |
280 |
26.7 |
|
16×0.75 |
24/0.20 |
16.6 |
362 |
26.7 |
|
19×0.75 |
24/0.20 |
17.4 |
410 |
26.7 |
|
20×0.75 |
24/0.20 |
18.6 |
457 |
26.7 |
|
24×0.75 |
24/0.20 |
20.6 |
526 |
26.7 |
|
33×0.75 |
24/0.20 |
22.5 |
674 |
26.7 |
|
37×0.75 |
24/0.20 |
23.3 |
740 |
26.7 |
|
43×0.75 |
24/0.20 |
26.5 |
878 |
26.7 |
|
48×0.75 |
24/0.20 |
26.9 |
955 |
26.7 |
|
2×1.0 |
32/0.20 |
8.7 |
98 |
20.0 |
|
3×1.0 |
32/0.20 |
9.5 |
115 |
20.0 |
|
5×1.0 |
32/0.20 |
11.1 |
163 |
20.0 |
|
7×1.0 |
32/0.20 |
12.0 |
203 |
20.0 |
|
11×1.0 |
32/0.20 |
15.8 |
319 |
20.0 |
|
16×1.0 |
32/0.20 |
17.4 |
415 |
20.0 |
|
19×1.0 |
32/0.20 |
18.7 |
494 |
20.0 |
|
20×1.0 |
32/0.20 |
19.6 |
527 |
20.0 |
|
24×1.0 |
32/0.20 |
21.6 |
609 |
20.0 |
|
33×1.0 |
32/0.20 |
24.1 |
812 |
20.0 |
|
37×1.0 |
32/0.20 |
25.0 |
889 |
20.0 |
|
43×1.0 |
32/0.20 |
27.9 |
1024 |
20.0 |
|
48×1.0 |
32/0.20 |
28.4 |
1116 |
20.0 |
|
2×1.5 |
48/0.20 |
9.3 |
116 |
13.7 |
|
3×1.5 |
48/0.20 |
10.2 |
143 |
13.7 |
|
5×1.5 |
48/0.20 |
11.9 |
200 |
13.7 |
|
7×1.5 |
48/0.20 |
13.3 |
265 |
13.7 |
|
11×1.5 |
48/0.20 |
17.0 |
396 |
13.7 |
|
16×1.5 |
48/0.20 |
19.2 |
544 |
13.7 |
|
19×1.5 |
48/0.20 |
20.2 |
623 |
13.7 |
|
20×1.5 |
48/0.20 |
21.1 |
644 |
13.7 |
|
24×1.5 |
48/0.20 |
23.4 |
769 |
13.7 |
|
33×1.5 |
48/0.20 |
26.0 |
1030 |
13.7 |
|
37×1.5 |
48/0.20 |
27.0 |
1131 |
13.7 |
|
43×1.5 |
48/0.20 |
30.2 |
1305 |
13.7 |
|
48×1.5 |
48/0.20 |
30.7 |
1427 |
13.7 |
|
2×2.5 |
77/0.20 |
10.2 |
147 |
8.21 |
|
3×2.5 |
77/0.20 |
11.2 |
186 |
8.21 |
|
5×2.5 |
77/0.20 |
13.6 |
278 |
8.21 |
|
7×2.5 |
77/0.20 |
14.7 |
352 |
8.21 |
|
11×2.5 |
77/0.20 |
19.4 |
552 |
8.21 |
|
16×2.5 |
77/0.20 |
21.4 |
736 |
8.21 |
|
19×2.5 |
77/0.20 |
22.5 |
847 |
8.21 |
|
20×2.5 |
77/0.20 |
24.0 |
928 |
8.21 |
|
24×2.5 |
77/0.20 |
26.6 |
1080 |
8.21 |
|
33×2.5 |
77/0.20 |
29.2 |
1417 |
8.21 |
|
37×2.5 |
77/0.20 |
30.3 |
1561 |
8.21 |
|
43×2.5 |
77/0.20 |
35.0 |
1891 |
8.21 |
|
48×2.5 |
77/0.20 |
35.6 |
2069 |
8.21 |
|
2×4.0 |
77/0.26 |
11.4 |
193 |
5.09 |
|
3×4.0 |
77/0.26 |
12.5 |
251 |
5.09 |
|
5×4.0 |
77/0.26 |
15.2 |
384 |
5.09 |
|
7×4.0 |
77/0.26 |
16.5 |
496 |
5.09 |
|
11×4.0 |
77/0.26 |
21.9 |
784 |
5.09 |
|
16×4.0 |
77/0.26 |
24.6 |
1083 |
5.09 |
|
19×4.0 |
77/0.26 |
25.9 |
1250 |
5.09 |
|
20×4.0 |
77/0.26 |
27.2 |
1329 |
5.09 |
|
24×4.0 |
77/0.26 |
30.2 |
1557 |
5.09 |
|
33×4.0 |
77/0.26 |
33.2 |
2063 |
5.09 |
|
37×4.0 |
77/0.26 |
35.5 |
2370 |
5.09 |
|
43×4.0 |
77/0.26 |
39.8 |
2741 |
5.09 |
|
48×4.0 |
77/0.26 |
40.5 |
3011 |
5.09 |
|
2×10 |
332/0.20 |
18.4 |
430 |
1.95 |
