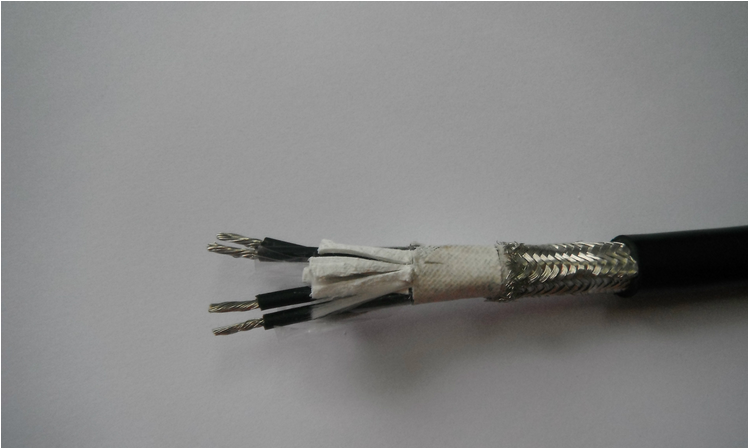

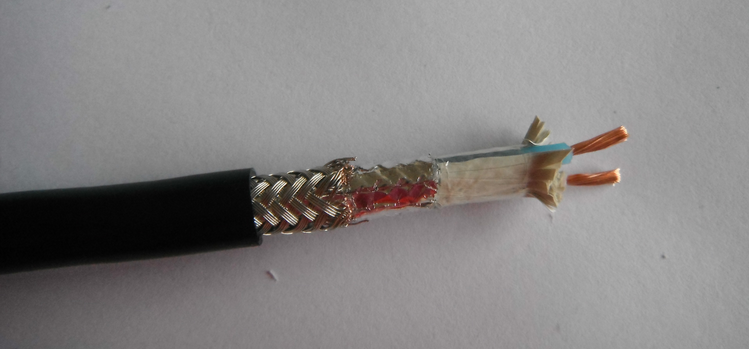

产品说明
RS-485W是从RS-232、RS-422通讯协议电缆演变提升而来，可替代RS-232、RS-422类型产品，是产品性能出众的一种产品。可用于各种复杂的工业自动化控制网络通讯，可采用二线与四线方式。二线制可实现真正的多点双向通信。http://www.anhdl.com
产品型号及名称
|
型号 |
名称 |
|
RS-485W（23） |
RS-485通讯网络电缆（铠装） |
|
型号规格 |
结构（㎜） |
电缆外径（㎜） |
特性阻抗(Ω) |
|
RS-485W |
2*24AWG（12/0.15） |
7.7 |
120±10 |
|
2*18AWG（16/0.254） |
8.2 |
||
|
RS-485W（23） |
2*18AWG（1/1.01） |
12.3 |
产品性能
具有较强的抗干扰性能，可应用于各种复杂的工业自动化控制网络通讯。
用于多点互联时非常方便，可省掉许多信号线，可支持32个驱动器和32个接收器。
具有超长的传输距离，在19kpbs下能创术1200米，如采用增加中继的方法对信号进行放大，最多可加入8个中继，可传输距离达9600米。http://www.anhdl.com
特性阻抗为120欧姆，电缆附有独立的TC接地导线，是传输RS-485、RS-232、RS-422通讯协议的专用电缆。http://www.anhdl.com
敷设条件，可根据环境要求，-40℃~90℃
允许最小弯曲半径＞10D
铠装双屏蔽型电缆，可用于鼠害严重以及有防雷防爆要求的场所，弯曲半径＞15D
Product features
Having good anti-jamming performance, they can be used in all kinds of complicated industrial automation control network communication.
It is very convenient to be used in multiple spot connections. They can support 32 drivers and 32 receivers.
They have overlong transmission range. They can transfer signals 1200 meters. If you magnify signals by using relay, you can add 8 relays at most and the transmission range can be 9600 meters.
Characteristic impedance is 120 Ohm. Cables have independent TC earth conductor in add. They are special purpose cables for transmission of RS-485、RS-232、RS-422 communication protocol.http://www.anhdl.com
About laying condition, they can meet the environmental requirement : -40℃~90℃
Minimum bending radius＞10D
Armored double screened cables can be used in seriously jamming, frequently rodent places and sites where the lightning protection and anti-explosion needs have. Minimum bending radius＞15D
