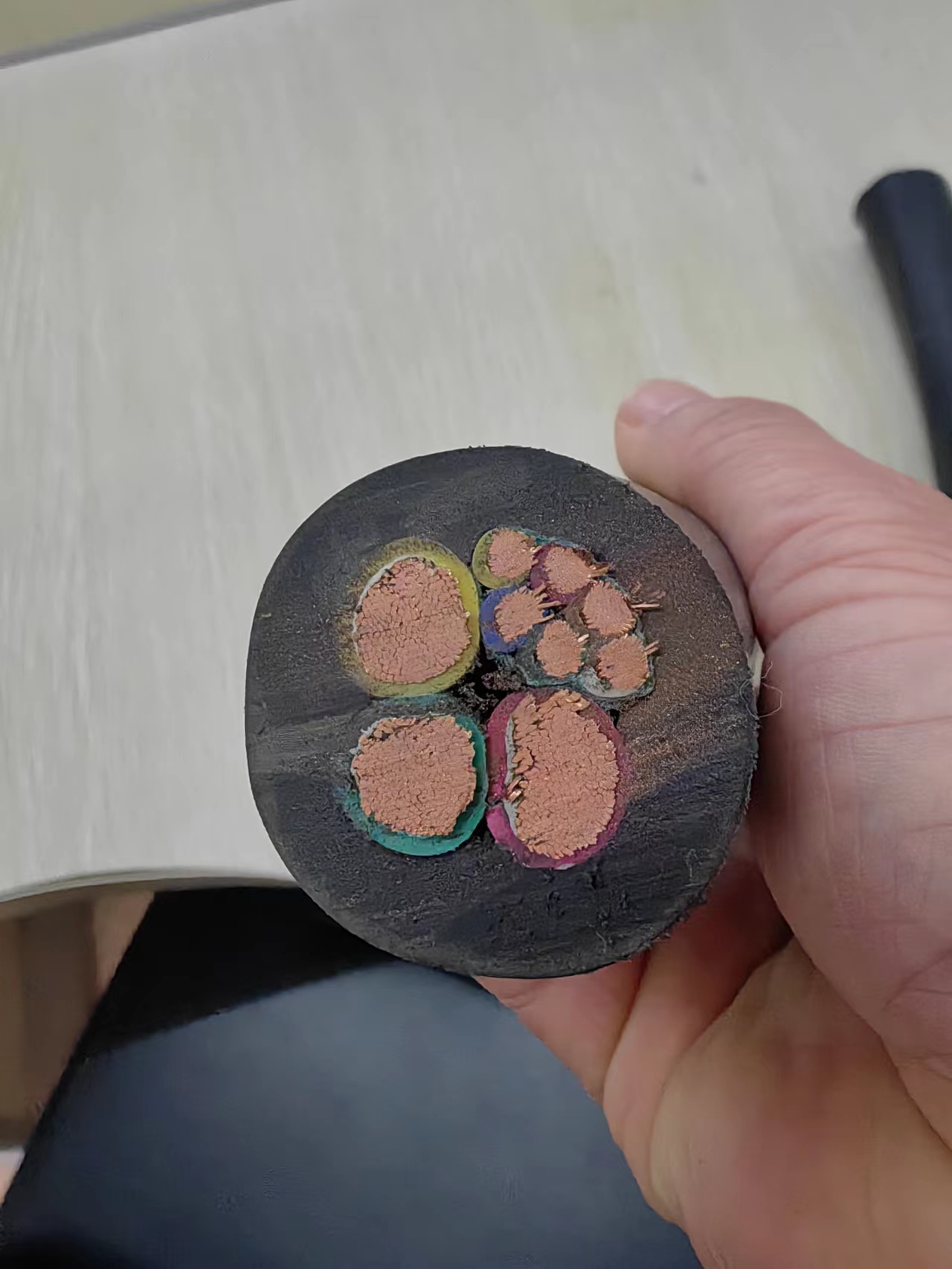

BP-YEFGBNJR-耐寒移动拖拽电缆
| 性 能 项 目 | 标 准 要 求 | 单 位 | 指 标 |
| 导体直流电阻 | 符合GB/T3956标准规定 | Ω/KM | 符合 |
| 功频耐压试验(交流50HZ) | |||
| 动力线芯 | 3.5/5 | KV/min | 不击穿 |
| 控制线芯 | 1.5/5 | KV/min | 不击穿 |
| 0℃时绝缘电阻常数 | |||
| 混合橡胶≥ | 3670 | MΩ×KM | 大于 |
| 高温橡胶≥ | 1500 | MΩ×KM | 大于 |
| 阻燃特性 | 符合GB/T18380-2001要求 | 通过 | |
| 弯曲性能试验 | 50000 | 次 | 线芯不断裂、绝缘不开裂 |
| 抗拉强度 | 12 | KN | 大于 |
| 芯数×导体标称截面(mm2) | 标称厚度mm | 参考载流量A | GB-YEFGBJR GB-YGFGBJR | |||
| 动力线芯 | 控制线芯 | 动力线芯绝缘 | 护套 | 电缆外径mm | 近似重量KG/KM | |
| 3×10 | 3×2.5 | 2.0 | 2.2 | 87 | 26.5—29.8 | 1988 |
| 3×16 | 3×2.5 | 2.2 | 2.2 | 120 | 31.6—34.7 | 2123 |
| 2×25 | 3×4 | 2.4 | 2.4 | 155 | 38.2—41.5 | 2845 |
| 3×35 | 3×4 | 2.8 | 2.4 | 185 | 42.1—46.8 | 3227 |
| 3×50 | 3×4 | 2.8 | 2.6 | 220 | 46.4—52.0 | 4171 |
| 3×70 | 3×6 | 3.0 | 2.8 | 270 | 52.7—59.0 | 5619 |
| 3×95 | 3×6 | 3.0 | 3.0 | 320 | 57.8—64.6 | 7634 |
| 型号 | 规格mm2 | 电缆外径mm | 弯曲半径mm | 参考重量kg/m |
| BP-YEFGBNJR | 3×10+10×2.5 | 36.0 | 540 | 1.781 |
| BP-YEFGBNJR | 3×16+10×2.5 | 42.0 | 630 | 2.178 |
| BP-YEFGBNJR | 3×25+14×2.5 | 46.0 | 690 | 3.215 |
| BP-YEFGBNJR | 3×35+10×2.5 | 46.8 | 702 | 3.223 |
| BP-YEFGBNJR | 3×35+1×10+3×2.5+2×1.5 | 46.0 | 690 | 3.216 |
| BP-YEFGBNJR | 3×50+14×2.5 | 53.0 | 795 | 3.197 |
| BP-YEFGBNJR | 3×70+13×4 | 59.0 | 885 | 4.642 |
| BP-YEFGBNJR | 3×95+16×2.5 | 57.0 | 855 | 5.036 |
| BP-YEFGBNJR | 3×120+1×70+10×2.5+4×4 | 65.0 | 975 | 7.129 |
| BP-YEFGBNJR | 3×150+1×70+10×2.5+4×4 | 70.0 | 1050 | 9.087 |
| YGCFNHP32 | 3×10+3×4 | 29.0 | 435 | 1.347 |
| YGCFNHP32 | 3×16+3×4 | 30.0 | 450 | 1.694 |
| YGCFNHP32 | 3×25+5×4 | 38.0 | 570 | 2.482 |
| YGCFNHP32 | 3×35+14×2.5 | 50.0 | 750 | 2.876 |
| YGCFNHP32 | 3×50+14×2.5 | 53.0 | 795 | 3.33 |
| YGCFNHP32 | 3×70+13×4 | 59.0 | 885 | 4.642 |
| YGCFNHP32 | 3×95+16×2.5 | 57.0 | 855 | 5.036 |
| YGCFNHP32 | 3×120+1×70+10×2.5+4×4 | 65.0 | 975 | 7.272 |
| YGCFNHP32 | 3×150+1×70+10×4+4×7 | 71.0 | 1065 | 9.176 |
七、造型指导
控制线芯为3芯6
1、额定电压0.6/1KV钢包车用移动拖拽电缆，动力线芯为3芯6 +4×2.5+2芯1.5表示为： BP-YEFGBNJR3*6+4*2.5+2*1.5mm2，控制线芯为3芯10拖拽电缆，动力线芯为3芯95
2、额定电压0.6/1KV耐高温型钢包车用移动 表示为： YGFRBG 0.6/1KV 3×95+3×10
